A Revolution in Sheet Metal Fabrication

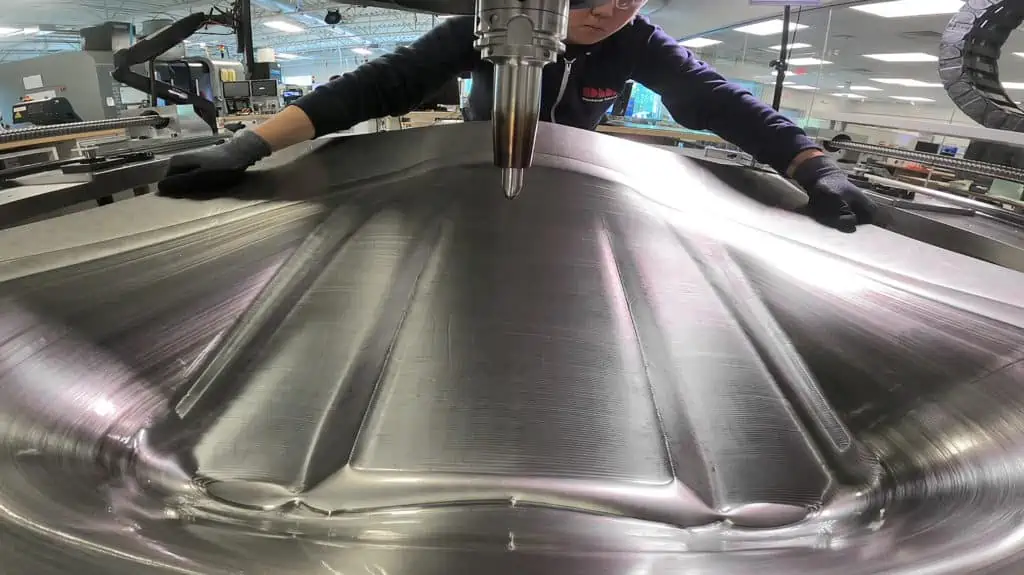

Introduced for the first time at IMTS 2022, the Figur G15 is the first commercial platform of its kind to shape sheet metal on demand directly from a digital file. A software-driven ceramic tool on an XY gantry forms the sheet with up to 2,000 lbs of force in a highly engineered and proprietary build zone.

Figur’s patent-pending Digital Sheet Forming (DSF) technology eliminates the need for a traditional stamping press or custom tools, molds, and dies – delivering sheet metal forming that is accessible, flexible, and cost-effective, even at low volumes.

Preliminary Specs

Max Sheet Size (XY) 1600 mm x 1200 mm
( 63.0 x 47.2 in)
Forming Area 1450 mm x 1000 mm
( 57.1 x 39.4 in)
Z Travel 400 mm ( 15.7 in)
Forming Force 2000 lbs X, Y & Z
Forming Speed 1m/sec
Materials Steel, 2.0 mm (14 Ga) and Aluminum, 2.5 mm (10 Ga)
Power 480 V / 3 Phase / 20 kw
Machine Dimensions 2.8 m x 2.2m x 1.8 m
( 110.2 x 86.6 x 70.9in)
Weight 8000 lbs

Digital Sheet Forming (DSF) Technology

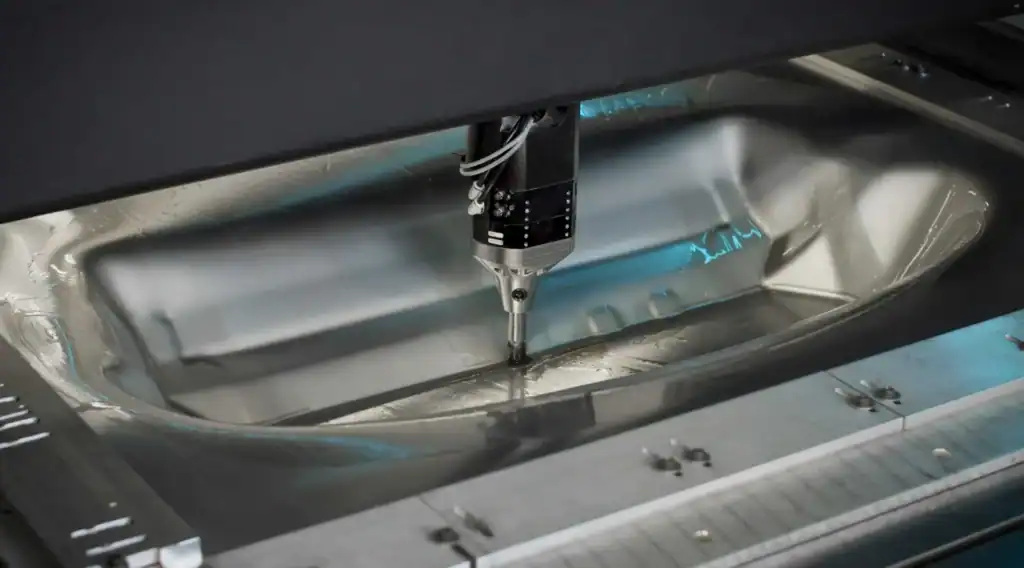

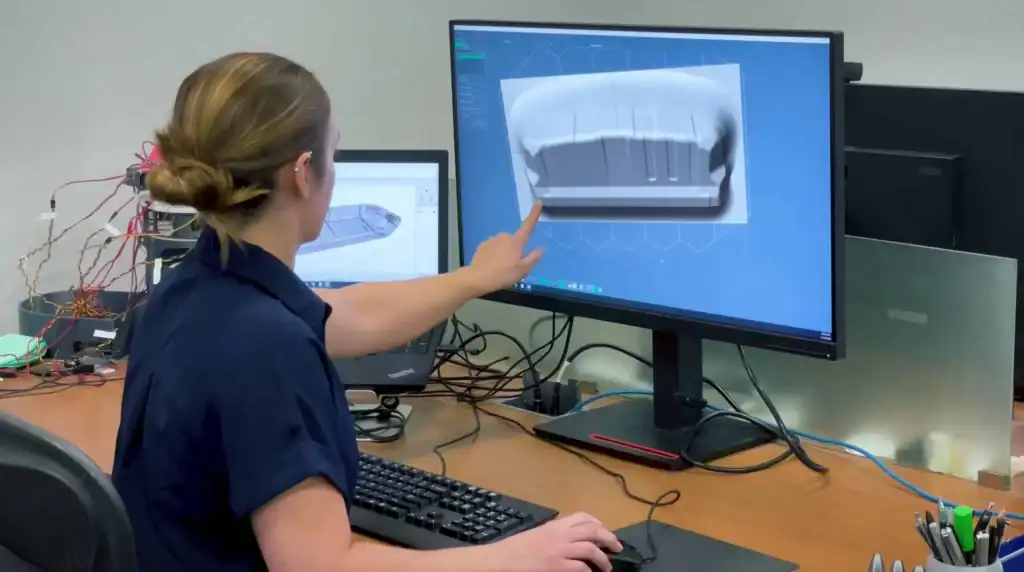

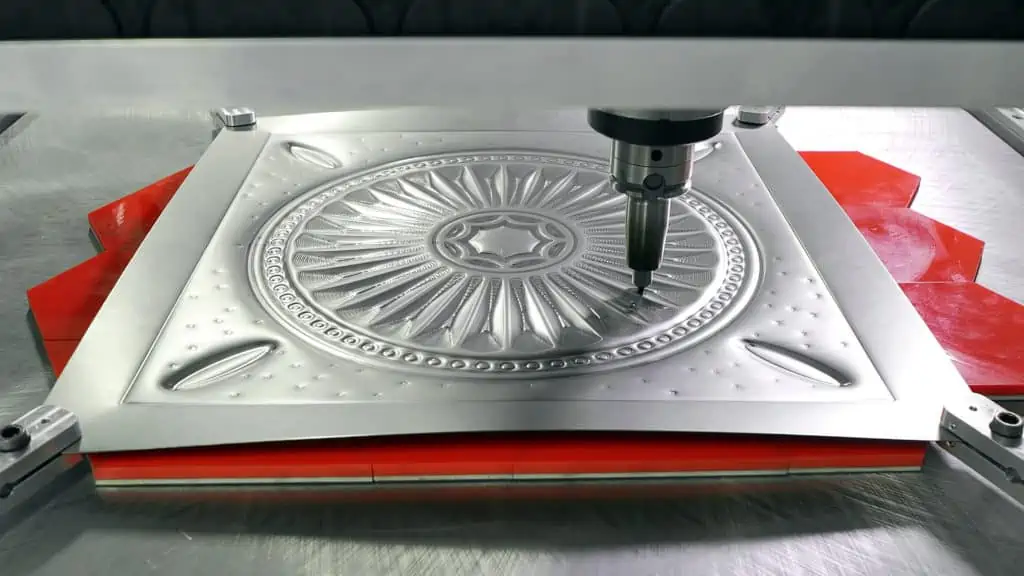

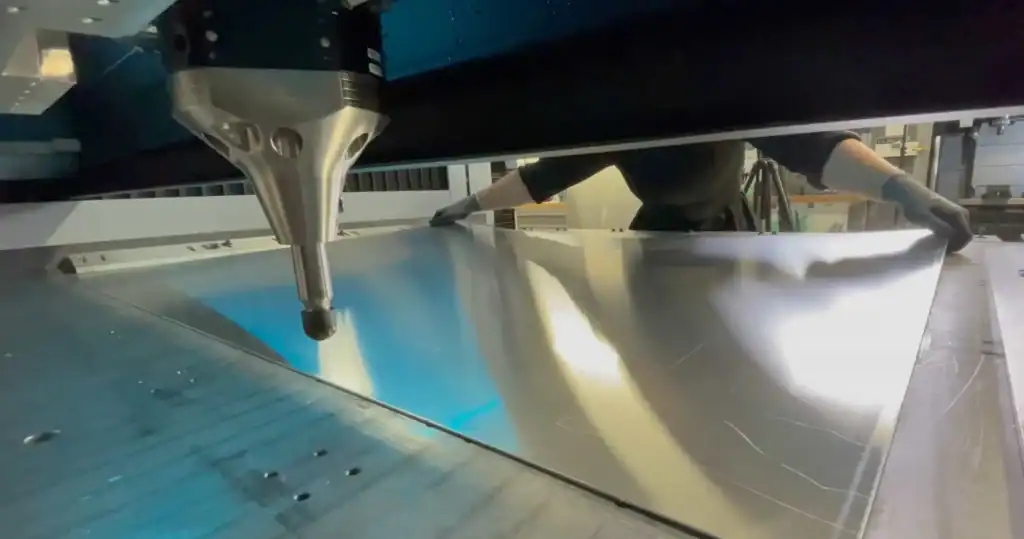

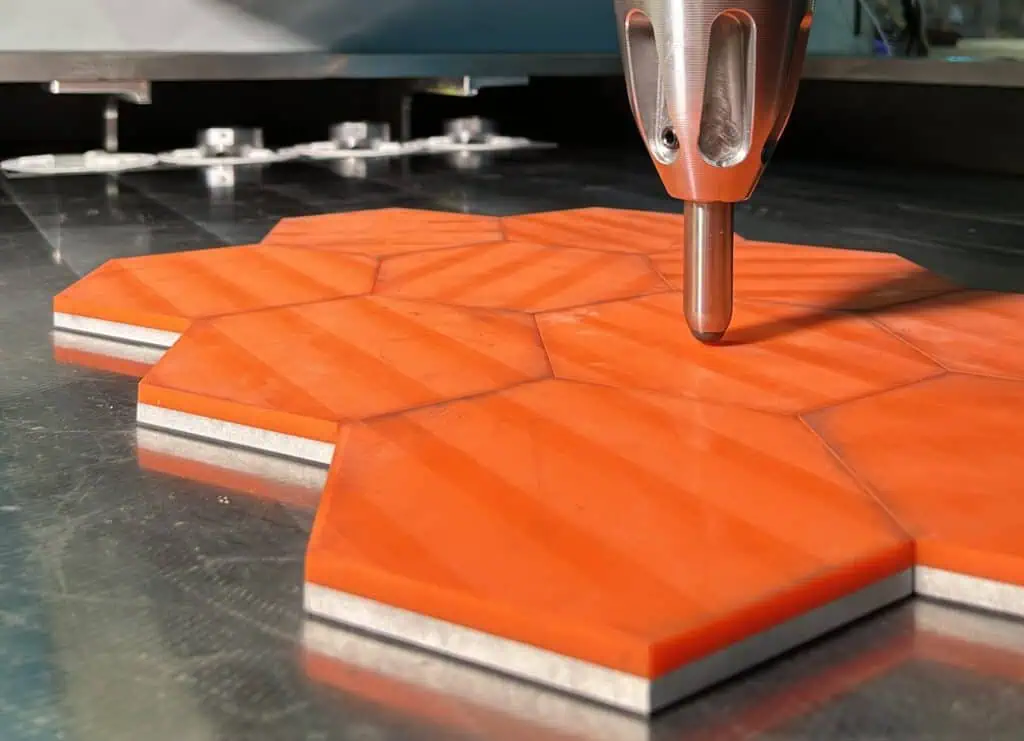

Figur’s patent-pending DSF technology begins with easy-to-use software that creates a toolpath for a ceramic tool on an XY gantry to shape sheet metal with up to 2,000 lbs of force.

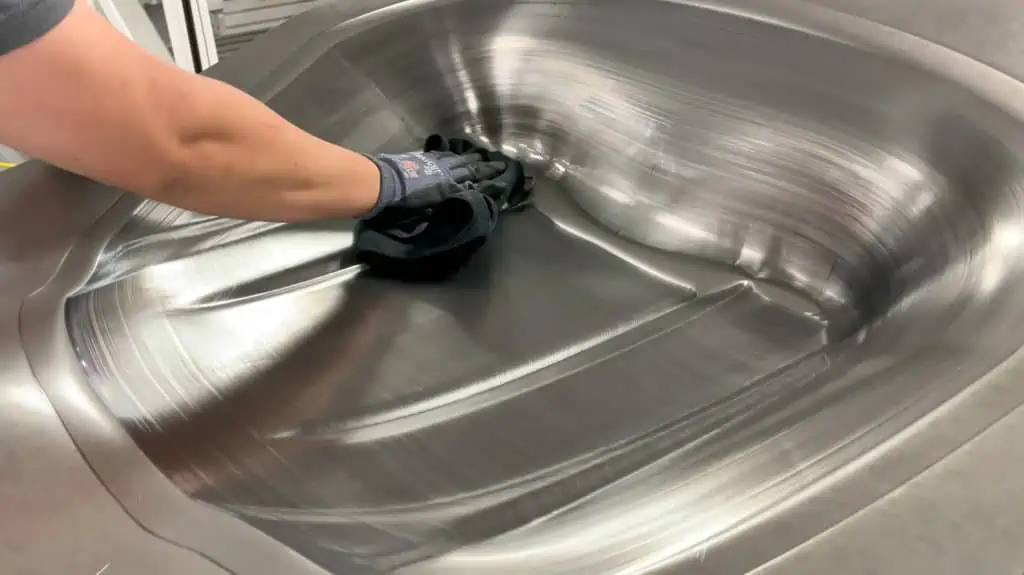

High precision is maintained by the proprietary build box design that reduces force distribution across the sheet during the build – a challenge that can impede accuracy, is difficult to predict, and has hindered other efforts to digitize sheet metal forming in the past. Parts have a high quality surface finish directly off the machine with little to no post finishing required.

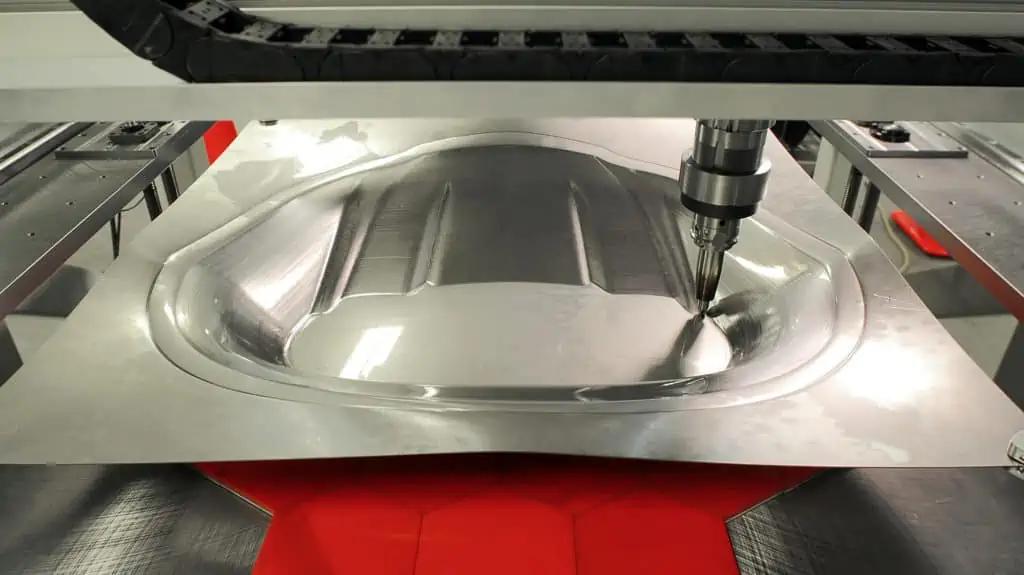

The Figur G15 has an XY forming area of 1450 x 1000 mm and can process forms up to 400mm in the Z direction. A wide variety of metals and sheet thicknesses can also be processed – including steel up to 2.0 mm thick and aluminum up to 2.5 mm.

Competing processes are so expensive from a capital investment and time perspective that the payback for the G15 is fast for both manufacturers and suppliers seeking lower volume production or prototyping solutions. With the Figur G15, manufacturers can supply their customers with unique metal products quickly without high startup costs and long wait times.

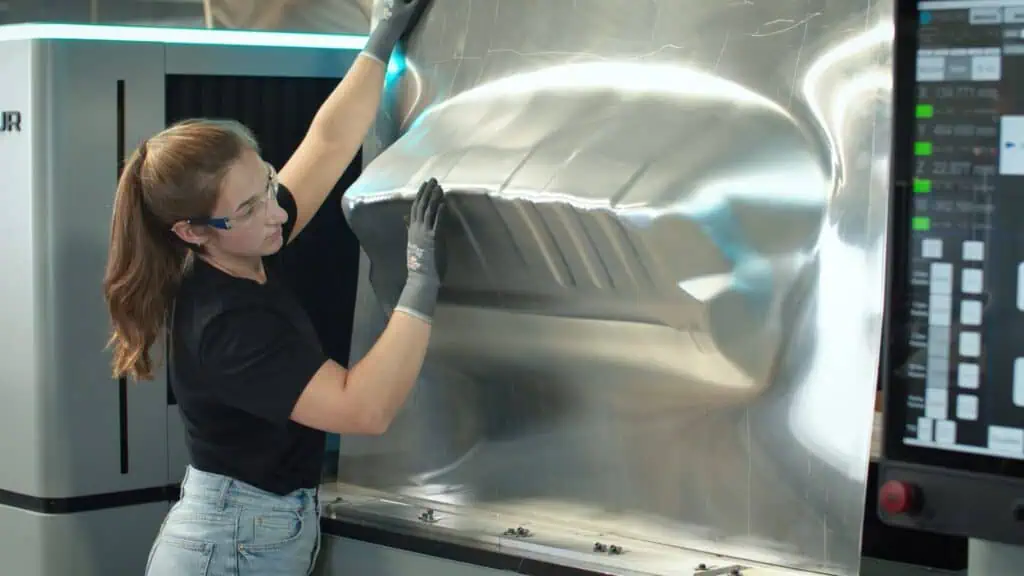

For example, producing a common automotive exhaust muffler would typically require the purchase of a $150,000 die with a three month lead time. At a quantity of 1,000 parts, the cost per part for a runoff would still be about $160 per part including materials.

On the Figur G15, however, the same quantity of parts could be produced in weeks with an all-in part cost of approximately $10 primarily materials and labor. That’s less than 10% of the cost of traditional stamping with no lead time required.

Revolutionizing Sheet Metal Fabrication

Traditional sheet metal forming is a capital- and time-intensive process that requires an expensive stamping press, which often costs about $1 million, as well as tools and dies that take months to produce.

While similar processes such as hydroforming, fluid cell presses, and zinc low-cost die tooling aim to reduce the time of forming sheet metal, their benefits are relatively incremental and still out of reach for many companies.

Efforts to simplify sheet metal forming with digital approaches have focused on using robots deploying a tool to form sheets or using many tooling points that are digitally controlled.

However, a major challenge with these efforts has been controlling forming forces that radiate across the sheet metal as the force is applied at the tooling point, causing deformation of the sheet that is difficult to predict and impedes accuracy.

While digital sheet metal cutting is widely used today, and has delivered many benefits to the sheet metal forming and fabricating industry, no digital sheet forming solutions have been widely commercialized.

Figur’s breakthrough and patent-pending DSF technology is ready to unlock the benefits of digitization for sheet metal manufacturers, making them more agile and making sheet metal forms more accessible to new markets.

Industries

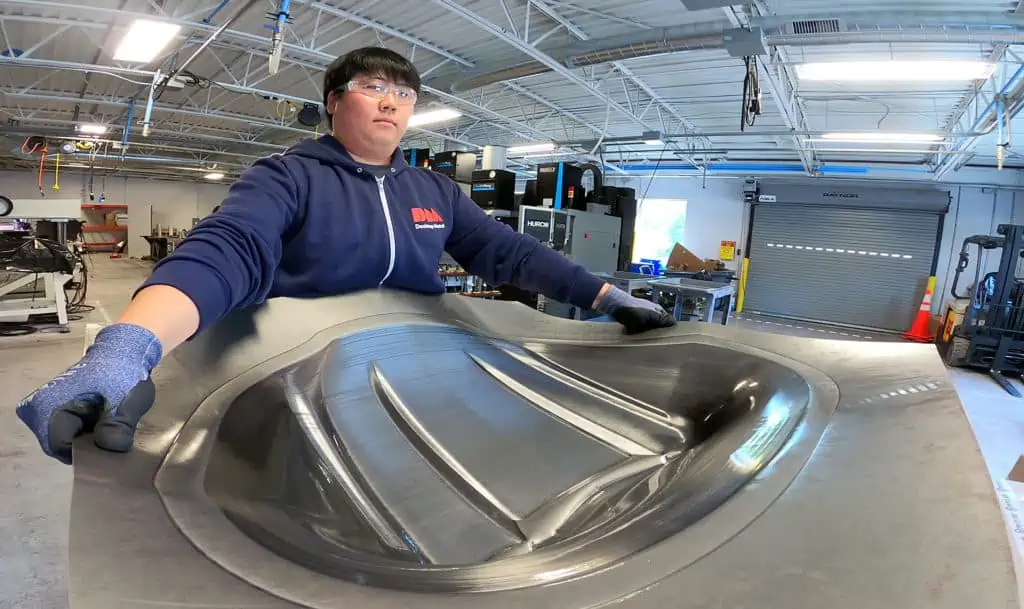

Automotive

Aerospace

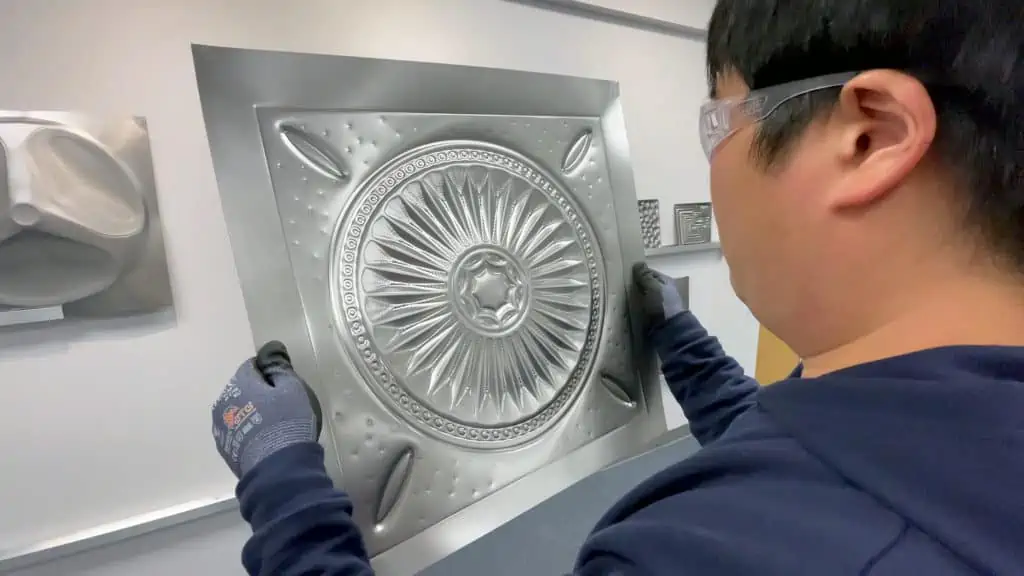

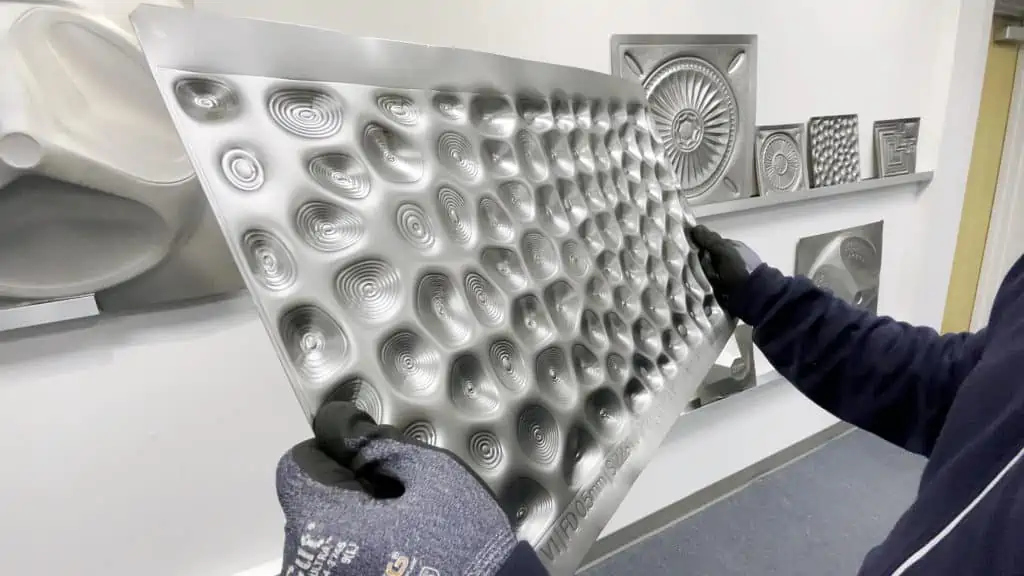

Architecture and Construction

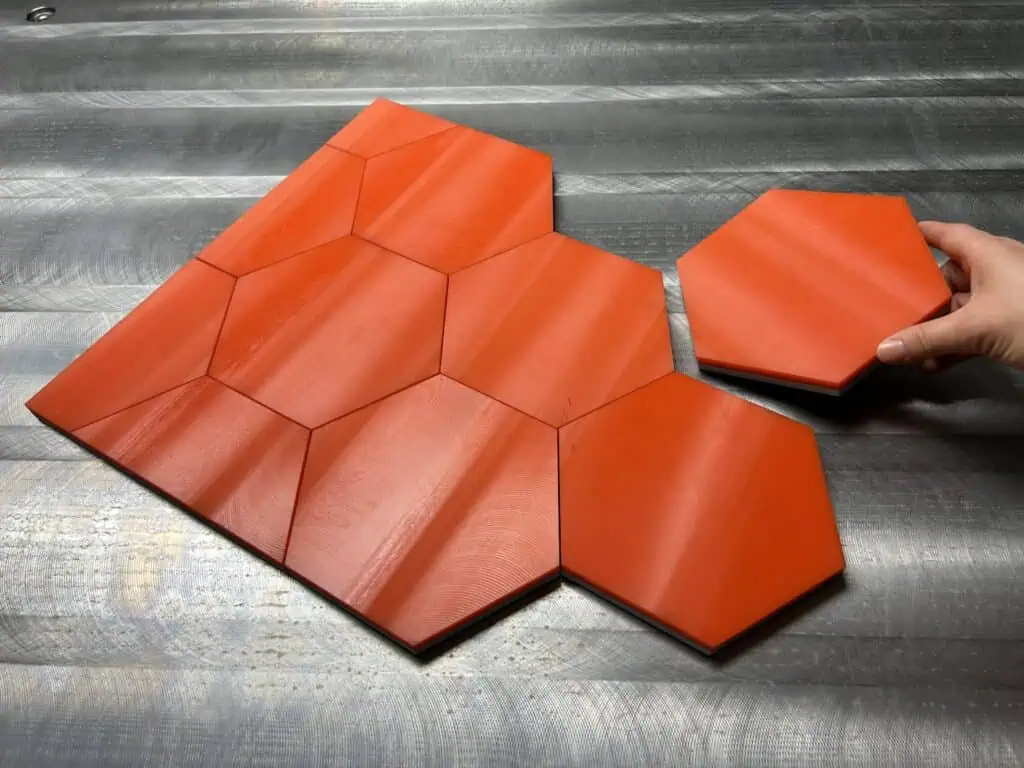

Consumer Products

Medical

Industrial
